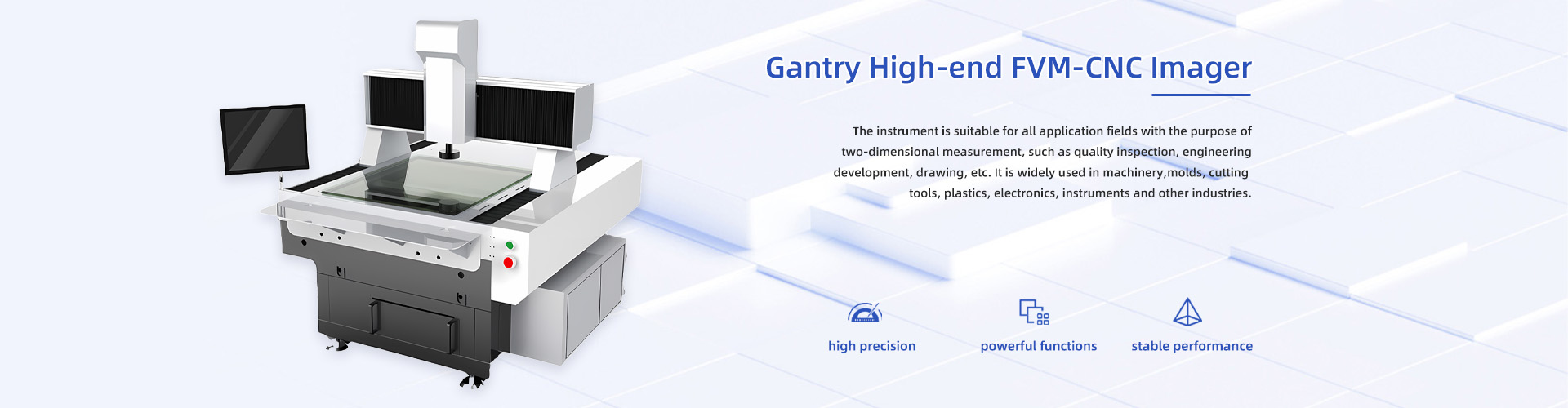

Gantry Basic FVM-CNC Imager

FVM-6050CNC
FVM-8060CNC
FVM-12080CNC

The FVM-CNC manual image measuring instrument has a beautiful structure and is easy to operate. Combined with the measurement software independently developed by our company, it can achieve accurate workpiece measurement.

It is widely used in machinery manufacturing, electronics, automobiles, hardware, plastics, molds and other industries. It can accurately detect the size, shape and position tolerance of workpieces, thereby completing tasks such as part inspection, shape measurement, and process control.

Consult

Features
Technical Indicators
Overall Dimension

FVM-CNC series measuring instruments are manual 2.5D precision image measuring instruments produced by our company. They have the characteristics of powerful functions, stable performance, high precision, simple operation and convenient maintenance. The images observed by the naked eye under a traditional microscope can be digitized and stored in the computer for various measurements and drawings. The obtained data can then be stored in the computer for future storage or email sending. This instrument is suitable for all application fields with the purpose of two-dimensional measurement, such as quality inspection, engineering development, drawing and other purposes. It is widely used in machinery, molds, cutting tools, plastics, electronics, instruments and other industries. Compared with other product series, this series has the characteristics of simple structure, strong bearing capacity, wide space for workpiece placement, and convenient loading and unloading.
Instrument model FVM-6050CNC FVM-8060CNC FVM-12080CNC Measuring stroke (mm) 500*600*200 600*800*200 800*1200*200 Dimensions (mm) 1300*1700*1700 1400*2000*1700 1600*2200*1700 Glass load-bearing capacity (kg) 25 35 35 Instrument weight (kg) 1300 1800 2100 Measurement accuracy X.Y axis≤（3+L/200）μm X.Y axis≤（3+L/200）μm X.Y axis≤（3+L/200）μm Repeat accuracy 3μm 3μm 3μm Grating scale resolution 0.0005mm 0.0005mm 0.0005mm CCD High resolution color 750TV line camera High resolution color 750TV line camera High resolution color 750TV line camera Lens 0.7～4.5X high definition manual zoom lens 0.7～4.5X high definition manual zoom lens 0.7～4.5X high definition manual zoom lens Image magnification 18～160X 18～160X 18～160X Measurement software Ins-C Ins-C Ins-C Upper light source Surface ring LED cold light source, adjustable brightness Surface ring LED cold light source, adjustable brightness Surface ring LED cold light source, adjustable brightness Lower light source Parallel optical path design, infinitely continuously adjustable LED cold light source Parallel optical path design, infinitely continuously adjustable LED cold light source Parallel optical path design, infinitely continuously adjustable LED cold light source Guide rail High precision linear guide rail High precision linear guide rail High precision linear guide rail Power supply 220V/50Hz 220V/50Hz 220V/50Hz

Instrument model	FVM-6050CNC	FVM-8060CNC	FVM-12080CNC
Measuring stroke (mm)	500600200	600800200	8001200200
Dimensions (mm)	130017001700	140020001700	160022001700
Glass load-bearing capacity (kg)	25	35	35
Instrument weight (kg)	1300	1800	2100
Measurement accuracy	X.Y axis≤（3+L/200）μm	X.Y axis≤（3+L/200）μm	X.Y axis≤（3+L/200）μm
Repeat accuracy	3μm	3μm	3μm
Grating scale resolution	0.0005mm	0.0005mm	0.0005mm
CCD	High resolution color 750TV line camera	High resolution color 750TV line camera	High resolution color 750TV line camera
Lens	0.7～4.5X high definition manual zoom lens	0.7～4.5X high definition manual zoom lens	0.7～4.5X high definition manual zoom lens
Image magnification	18～160X	18～160X	18～160X
Measurement software	Ins-C	Ins-C	Ins-C
Upper light source	Surface ring LED cold light source, adjustable brightness	Surface ring LED cold light source, adjustable brightness	Surface ring LED cold light source, adjustable brightness
Lower light source	Parallel optical path design, infinitely continuously adjustable LED cold light source	Parallel optical path design, infinitely continuously adjustable LED cold light source	Parallel optical path design, infinitely continuously adjustable LED cold light source
Guide rail	High precision linear guide rail	High precision linear guide rail	High precision linear guide rail
Power supply	220V/50Hz	220V/50Hz	220V/50Hz
