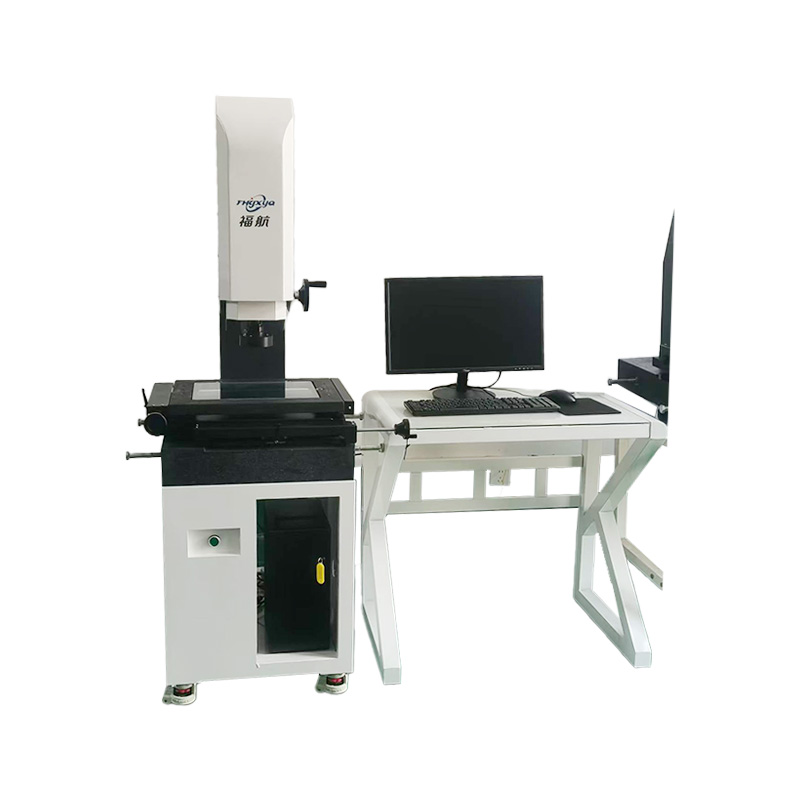

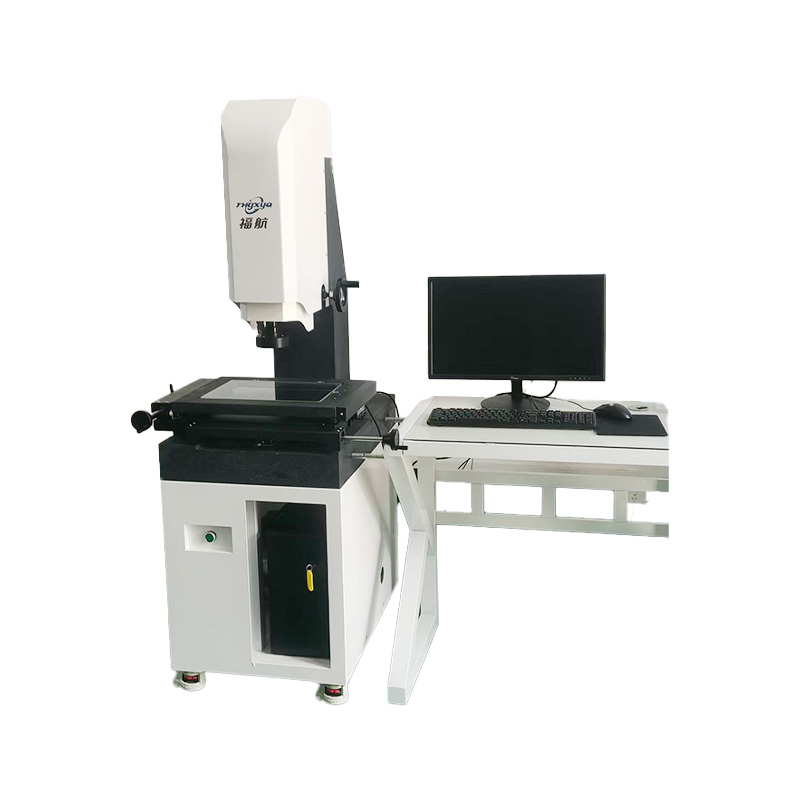

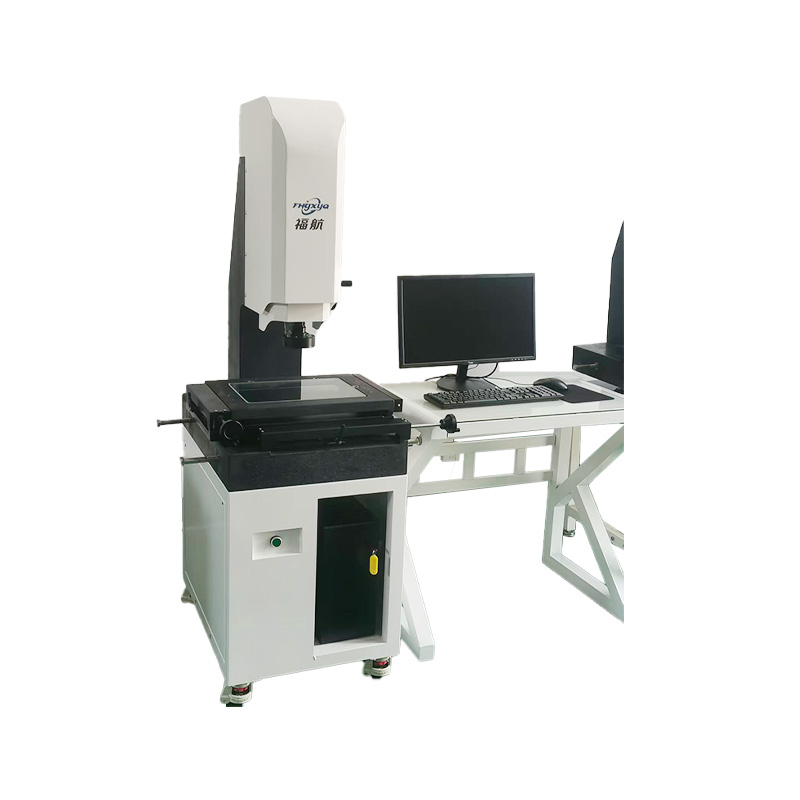

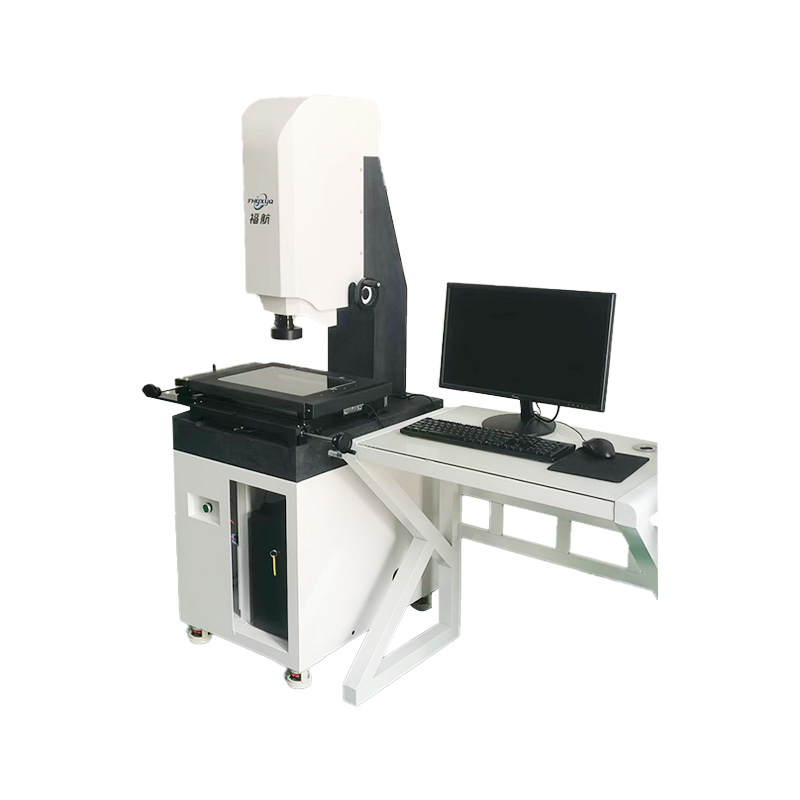

FVM-B Manual Image Measuring Instrument

FVM-3020B
FVM-5040B
FVM-4030B
It is widely used in small aircraft parts, aerospace research institutes, aerospace standard parts, military special-shaped small parts, metrology institutes, conductive particles, PCB boards, TP, TFT, mobile phone accessories, dish accessories, mold products, tools, gears, hardware products, terminals, screws, springs, electronic products, connectors, clocks, wires, stamping products, plastic products, auto parts, medical equipment, metrology institutes, colleges and universities, etc. It can accurately detect the size, shape and position tolerance of workpieces, thereby completing tasks such as part detection, shape measurement, and process control.

Consult

Features
Technical Indicators
Overall Dimension

FVM-B series measuring instruments are manual 2.5D precision image measuring instruments produced by our company. They are characterized by powerful functions, stable performance, high precision, simple operation and convenient maintenance. The images observed by naked eyes under a traditional microscope can be digitized and stored in a computer for various measurements and drawings. The data obtained can then be stored in the computer for future storage or e-mailing. The instrument is suitable for all application fields with the purpose of two-dimensional measurement, such as quality inspection, engineering development, drawing and other purposes. It is widely used in machinery, molds, cutting tools, plastics, electronics, instruments and other industries.
Instrument model FVM-4030B FVM-5040B FVM-6050B Measuring stroke (mm) 400*300*200 500*400*200 600*500*200 Dimensions (mm) 850*700*1700 (excluding computer desk) 1050*850*1700 (excluding computer desk) 1150*950*1700 (excluding computer desk) Glass load-bearing capacity (kg) 35 35 35 Instrument weight(kg) 420 520 620 Measurement accuracy X.Y axis ≤ (3+L/200) μm X.Y axis ≤ (3+L/200) μm X.Y axis ≤ (3+L/200) μm Repeat accuracy 3μm 3μm 3μm Grating scale resolution 0.001mm 0.001mm 0.001mm CCD 1.3 million pixel Hikvision camera 1.3 million pixel Hikvision camera 1.3 million pixel Hikvision camera Lens 0.7～4.5X high-definition manual zoom lens 0.7～4.5X high-definition manual zoom lens 0.7～4.5X high-definition manual zoom lens Image magnification 18～160X 18～160X 18～160X Measurement software Ins-m Ins-m Ins-m Upper light source Surface ring LED cold light source, adjustable brightness Surface ring LED cold light source, adjustable brightness Surface ring LED cold light source, adjustable brightness Lower light source Parallel optical path design, infinitely continuously adjustable LED cold light source Parallel optical path design, infinitely continuously adjustable LED cold light source Parallel optical path design, infinitely continuously adjustable LED cold light source Guide rail High-precision linear guide High-precision linear guide High-precision linear guide rail Power supply 220V/50Hz 220V/50Hz 220V/50Hz

Instrument model	FVM-4030B	FVM-5040B	FVM-6050B
Measuring stroke (mm)	400300200	500400200	600500200
Dimensions (mm)	8507001700 (excluding computer desk)	10508501700 (excluding computer desk)	11509501700 (excluding computer desk)
Glass load-bearing capacity (kg)	35	35	35
Instrument weight(kg)	420	520	620
Measurement accuracy	X.Y axis ≤ (3+L/200) μm	X.Y axis ≤ (3+L/200) μm	X.Y axis ≤ (3+L/200) μm
Repeat accuracy	3μm	3μm	3μm
Grating scale resolution	0.001mm	0.001mm	0.001mm
CCD	1.3 million pixel Hikvision camera	1.3 million pixel Hikvision camera	1.3 million pixel Hikvision camera
Lens	0.7～4.5X high-definition manual zoom lens	0.7～4.5X high-definition manual zoom lens	0.7～4.5X high-definition manual zoom lens
Image magnification	18～160X	18～160X	18～160X
Measurement software	Ins-m	Ins-m	Ins-m
Upper light source	Surface ring LED cold light source, adjustable brightness	Surface ring LED cold light source, adjustable brightness	Surface ring LED cold light source, adjustable brightness
Lower light source	Parallel optical path design, infinitely continuously adjustable LED cold light source	Parallel optical path design, infinitely continuously adjustable LED cold light source	Parallel optical path design, infinitely continuously adjustable LED cold light source
Guide rail	High-precision linear guide	High-precision linear guide	High-precision linear guide rail
Power supply	220V/50Hz	220V/50Hz	220V/50Hz
